MAK 452 AK

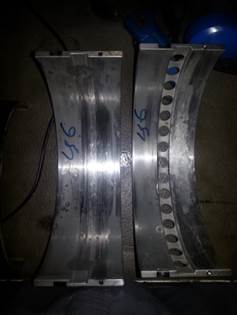

Damaged Crankpin & Bearing

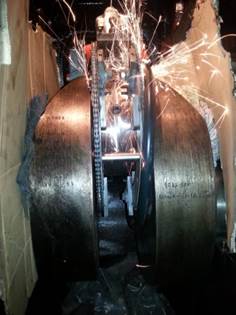

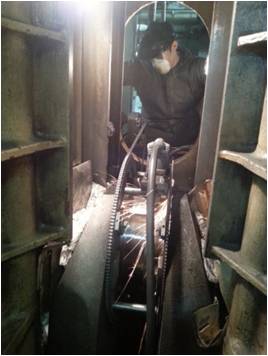

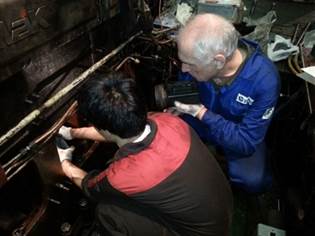

Portable Grinding

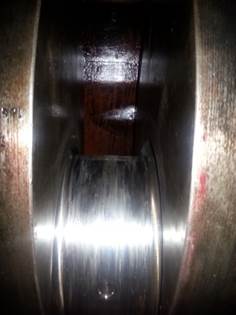

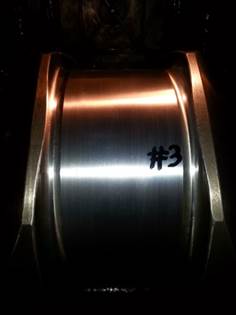

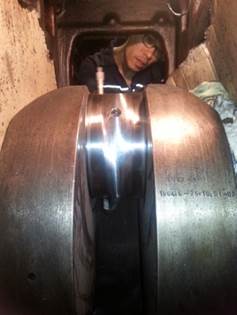

Final Surface Check

Portable Grinding Video


6L35MC

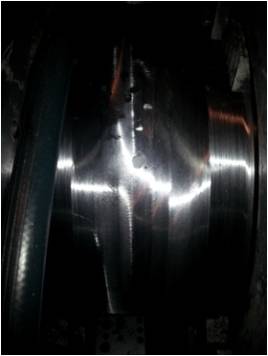

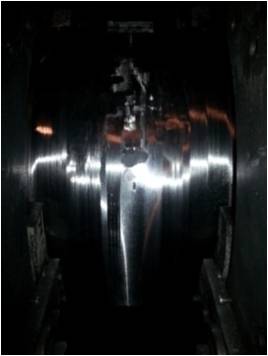

Crank Pin Grinding : 0~3.40mm

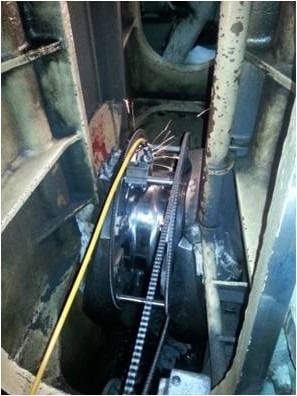

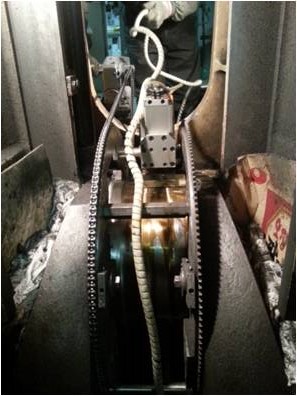

Fillet Grinding : Connecting Fillet grinder to the Sprocket

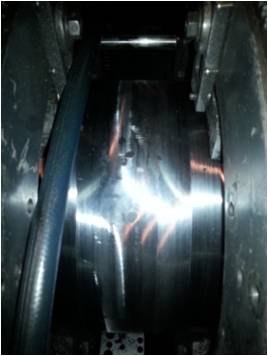

Crank Pin Planarization : Set up Air Vibrator & Grinding 0~0.05mm

Surface Contact Check : Using Blue Paste & Bearing

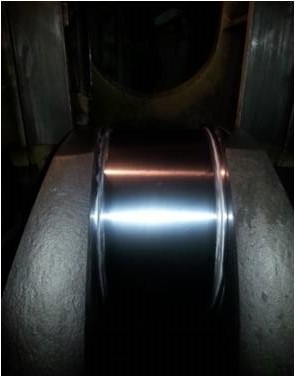

Final Crank pin Surface : Total 3.5mm Grinding

Portable Grinding Video


Rotor Journal Seal Ring

Rotor Journal Seal Ring Damaged

Rotor Journal Seal Ring Grinding

Super finishing

Run-Out Check

Final Rotor Journal surface
